SMA Male to TNC Female Adapter

Table of Contents

1. Introduction to SMA to TNC Adapters

2. Technical Specifications & Build Quality

3. Key Features of the Shahje.pk Adapter

4. Common Applications: WiFi, GPS, and Telecom

5. How to Identify Connector Genders

6. Why Signal Integrity Matters (VSWR & Loss)

7. Installation & Maintenance Tips

8. Frequently Asked Questions (FAQs)

<a name="introduction"></a>

1. Introduction to SMA to TNC Adapters

In the world of Radio Frequency (RF) engineering, seamless connectivity is the backbone of communication. The SMA Male to TNC Female Adapter is a precision-engineered inter-series coaxial component designed to bridge two distinct connector standards.

At Shahje.pk, we understand that a single weak link can degrade an entire network's performance. That’s why our SMA-to-TNC connectors are manufactured to meet rigorous international standards, ensuring that whether you are working on a DIY drone project or a commercial telecommunications tower, your signal remains crisp and uninterrupted.

<a name="specifications"></a>

2. Technical Specifications & Build Quality

This adapter is not just a piece of metal; it is a tuned electronic component. Below are the formal technical parameters:

<a name="features"></a>

3. Key Features of the Shahje.pk Adapter

• Low Insertion Loss: High-grade PTFE dielectrics ensure that the signal loss (attenuation) is kept below 0.1 dB at standard frequencies.

• Vibration Resistance: Unlike BNC connectors that use a bayonet mount, the TNC end features a threaded coupling, making it perfect for high-vibration environments like vehicles or machinery.

• Corrosion Protection: The nickel-plated outer shell provides a robust shield against oxidation, while the gold-plated center pin ensures a perfect electrical path.

• Wide Compatibility: Works seamlessly with standard [Coaxial Cables] such as RG58, RG142, and LMR-400 assemblies.

<a name="applications"></a>

4. Common Applications

Wireless Networking & WiFi

Many industrial routers use TNC interfaces for external antennas, while the antennas themselves often come with SMA leads. This adapter is the "missing link" for extending your range.

GPS & GNSS Systems

Professional GPS receivers frequently utilize TNC connectors for their ruggedness. This adapter allows you to connect high-gain SMA antennas to these receivers effortlessly.

Testing & Measurement

Lab equipment like Spectrum Analyzers and Signal Generators often utilize SMA ports. Use this adapter to interface with TNC-terminated test leads without needing expensive new cables.

<a name="gender-guide"></a>

5. How to Identify Connector Genders

RF gender identification can be tricky. Here is a quick cheat sheet for this specific adapter:

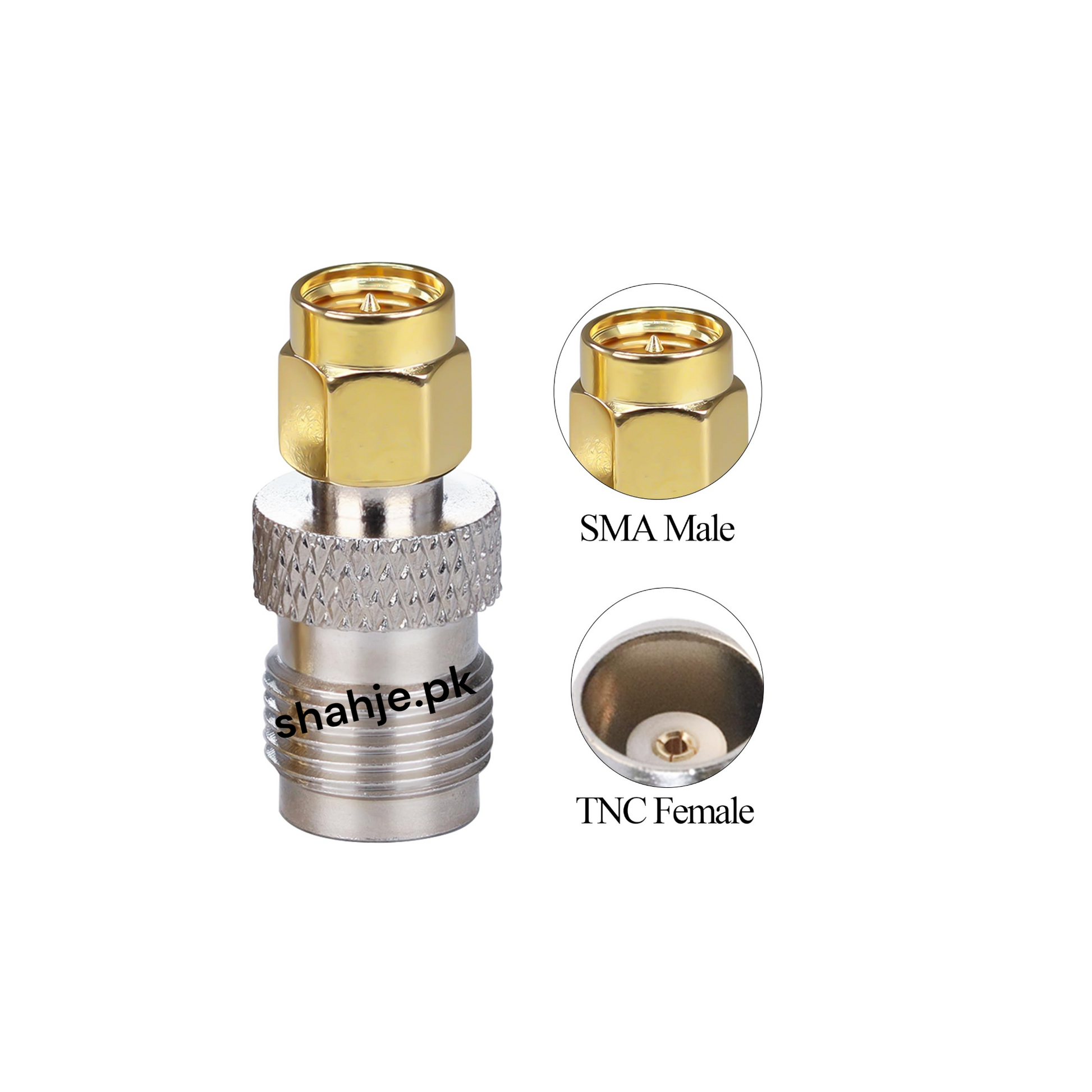

• SMA Male: Has internal threads and a center pin.

• TNC Female: Has external threads and a hollow center socket.



Note: This is a Standard Polarity adapter. If you are looking for "Reverse Polarity" (RP) versions commonly used in consumer WiFi, please visit our [SMA Connector Series] page.

<a name="signal-integrity"></a>

6. Why Signal Integrity Matters

When you introduce an adapter into a signal path, you introduce a potential "reflection point." If the internal impedance deviates even slightly from 50 Ohms, you get a high Voltage Standing Wave Ratio (VSWR).

Our adapters are tested using Vector Network Analyzers (VNAs) to ensure a flat response across the spectrum. By maintaining a constant 50 Ohm profile, the adapter prevents "ghosting" or data packet loss in high-speed digital transmissions.

<a name="installation"></a>

7. Installation & Maintenance Tips

1. Hand Tighten First: Always start the threads by hand to avoid cross-threading.

2. Use a Torque Wrench: For professional applications, SMA connectors should be tightened to approximately 8 in-lbs.

3. Keep it Clean: Use isopropyl alcohol and a lint-free swab to clean the center contacts if you notice signal drops.

4. Avoid Over-tightening: Over-tightening can deform the PTFE insulator, changing the impedance.

<a name="faqs"></a>

8. Frequently Asked Questions (FAQs)

Q: Can I use this for 75 Ohm TV cables?

A: No, this is a 50 Ohm adapter. Using it with 75 Ohm systems will cause significant signal reflection and potential hardware damage.

Q: Is this adapter waterproof?

A: While TNC connectors are more weather-resistant than SMA, the adapter itself is not "IP-rated" for submersion. We recommend using heat-shrink tubing or weatherproofing tape for outdoor installations.

Q: Does it support 5G frequencies?

A: Yes, it supports frequencies well into the microwave range, making it compatible with most 5G Sub-6GHz applications

Shop with Confidence at Shahje.pk

We are Pakistan's leading provider of [RF Adapters & Connectors]. Every product is inspected for quality before dispatch to ensure your projects never stop.
