The Jazz D523 is a compact and powerful 4G LTE WiFi hotspot device designed to keep you connected wherever you go. Manufactured under Jazz’s brand in Pakistan, this device is widely used not only by Jazz SIM users but also by those who unlock it for multi-carrier usage. With its robust network performance, affordable pricing, and portable design, the D523 is perfect for students, remote workers, and travelers.

Whether you're using it for streaming, online gaming, Zoom calls, or browsing, the Jazz D523 offers stable internet speeds, user-friendly configuration, and affordable connectivity options in areas with limited wired internet.

Jazz D523 4G LTE Pocket WiFi – Unlocked Device Review & Complete User Guide

📑 Table of Contents

1. Introduction to Jazz D523 4G LTE Pocket WiFi

2. Key Features at a Glance

3. Design and Build Quality

4. Hardware Specifications

5. Network Compatibility & SIM Unlocking

6. WiFi Performance & Range

7. Battery Life and Charging Capabilities

8. Web Interface and Configuration

9. Jazz D523 vs Competitors

10. Ideal Use Cases (Home, Travel, Business)

11. How to Set Up and Activate Jazz D523

12. Troubleshooting Common Issues

13. Firmware Upgrades and Customization

14. Security and Device Management

15. Accessories and Add-ons

16. Price and Value Analysis

17. Customer Reviews and Feedback

18. FAQs – Jazz D523

19. Final Verdict: Should You Buy It?

1. Introduction to Jazz D523 4G LTE Pocket WiFi

The Jazz D523 is a compact and powerful 4G LTE WiFi hotspot device designed to keep you connected wherever you go. Manufactured under Jazz’s brand in Pakistan, this device is widely used not only by Jazz SIM users but also by those who unlock it for multi-carrier usage. With its robust network performance, affordable pricing, and portable design, the D523 is perfect for students, remote workers, and travelers.

Whether you're using it for streaming, online gaming, Zoom calls, or browsing, the Jazz D523 offers stable internet speeds, user-friendly configuration, and affordable connectivity options in areas with limited wired internet.

2. Key Features at a Glance

• ✅ 4G LTE CAT4 Speeds up to 150Mbps (download) / 50Mbps (upload)

• ✅ WiFi Connectivity for up to 10 devices

• ✅ Unlocked Capability (works with Jazz, Zong, Ufone, Telenor & international SIMs after unlocking)

• ✅ Compact Design – pocket-sized and lightweight

• ✅ 2000mAh battery (approx. 5–6 hours working time)

• ✅ Web-based user interface for easy management

• ✅ Supports Micro SIM card

• ✅ WiFi 802.11 b/g/n 2.4GHz

• ✅ Plug & Play Installation

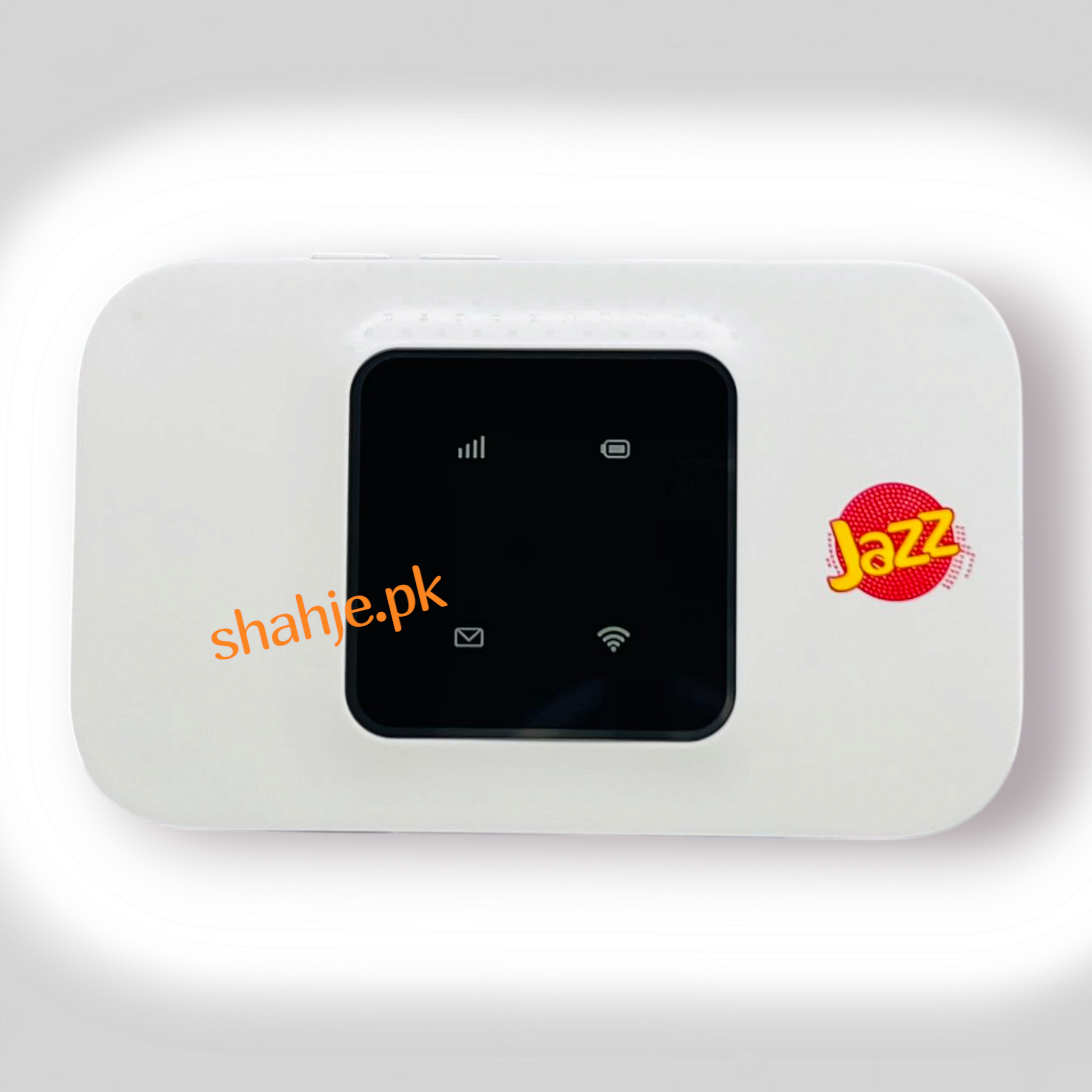

3. Design and Build Quality

The Jazz D523 offers a clean, minimalist look. The matte plastic casing feels durable and is resistant to fingerprints and scratches. It features:

• Rounded edges for a comfortable grip

• LED indicators on the front (Signal, WiFi, Battery, SMS)

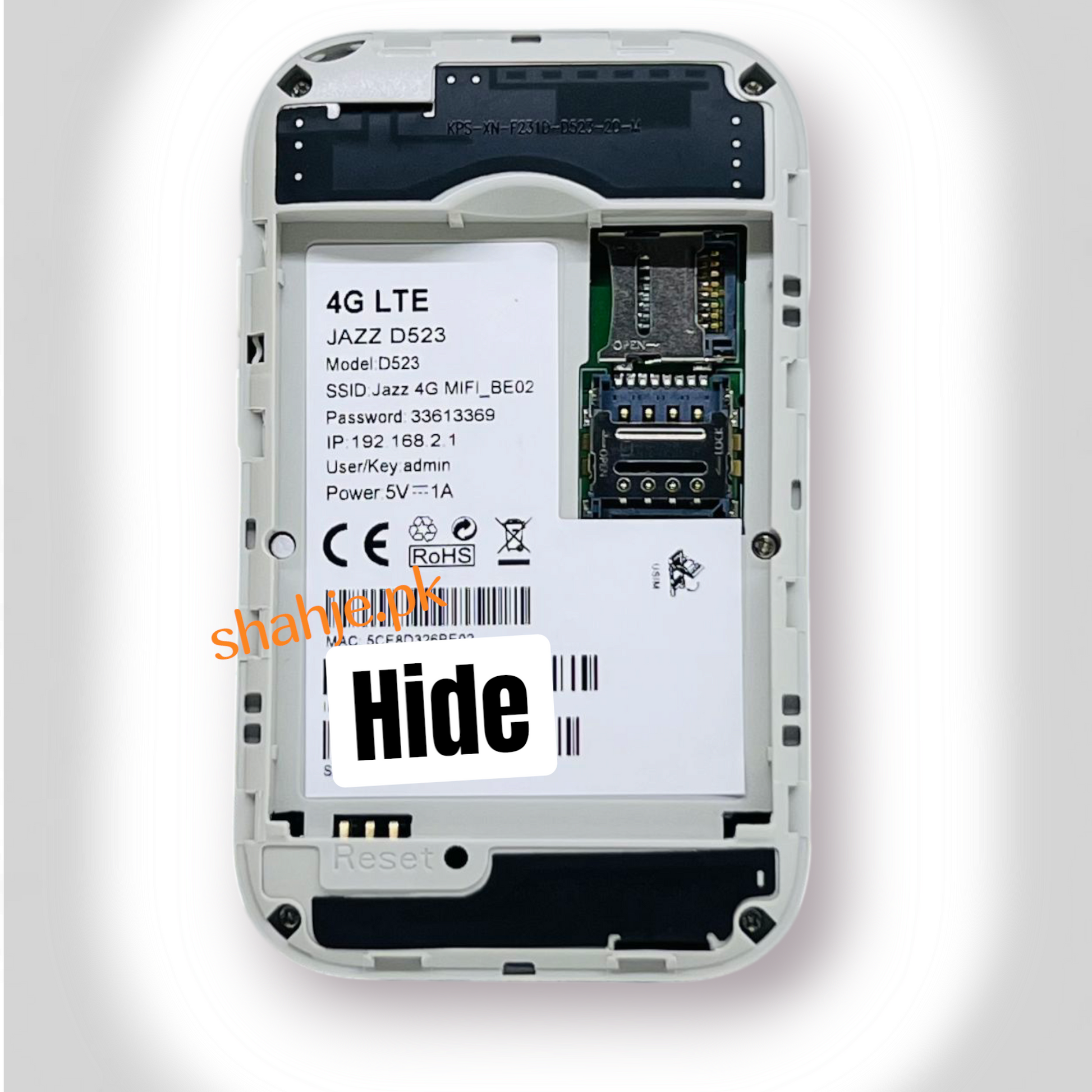

• Hidden SIM slot and battery compartment on the rear

• Lightweight (approx. 80-100g), making it ideal for pockets and bags

Despite being low-cost, the D523 doesn’t feel “cheap.” The build is sturdy, and its LED indicators are bright and easy to read even in daylight.

4. Hardware Specifications

While not groundbreaking, these specs are reliable and adequate for light-to-medium users.

5. Network Compatibility & SIM Unlocking

By default, the Jazz D523 is locked to Jazz network. However, with basic unlocking methods or paid firmware solutions, it can be used with other networks like:

• 🌐 Zong 4G

• 📡 Ufone 4G

• 🔁 Telenor 4G

• ✈️ International 4G providers (in supported bands)

Unlocked devices can save users from being tied to expensive Jazz packages and allow flexibility based on regional network strength.

6. WiFi Performance & Range

The D523 broadcasts a 2.4GHz WiFi signal, providing coverage up to:

• 📏 10-15 meters indoors

• 🌳 Up to 25 meters in open areas

Supports up to 10 connected devices such as:

• Smartphones

• Laptops

• Smart TVs

• Tablets

• IoT Devices

Speed tests show real-world download speeds of 20–40 Mbps in strong signal areas. This is more than enough for HD streaming, social media, and light gaming.

7. Battery Life and Charging Capabilities

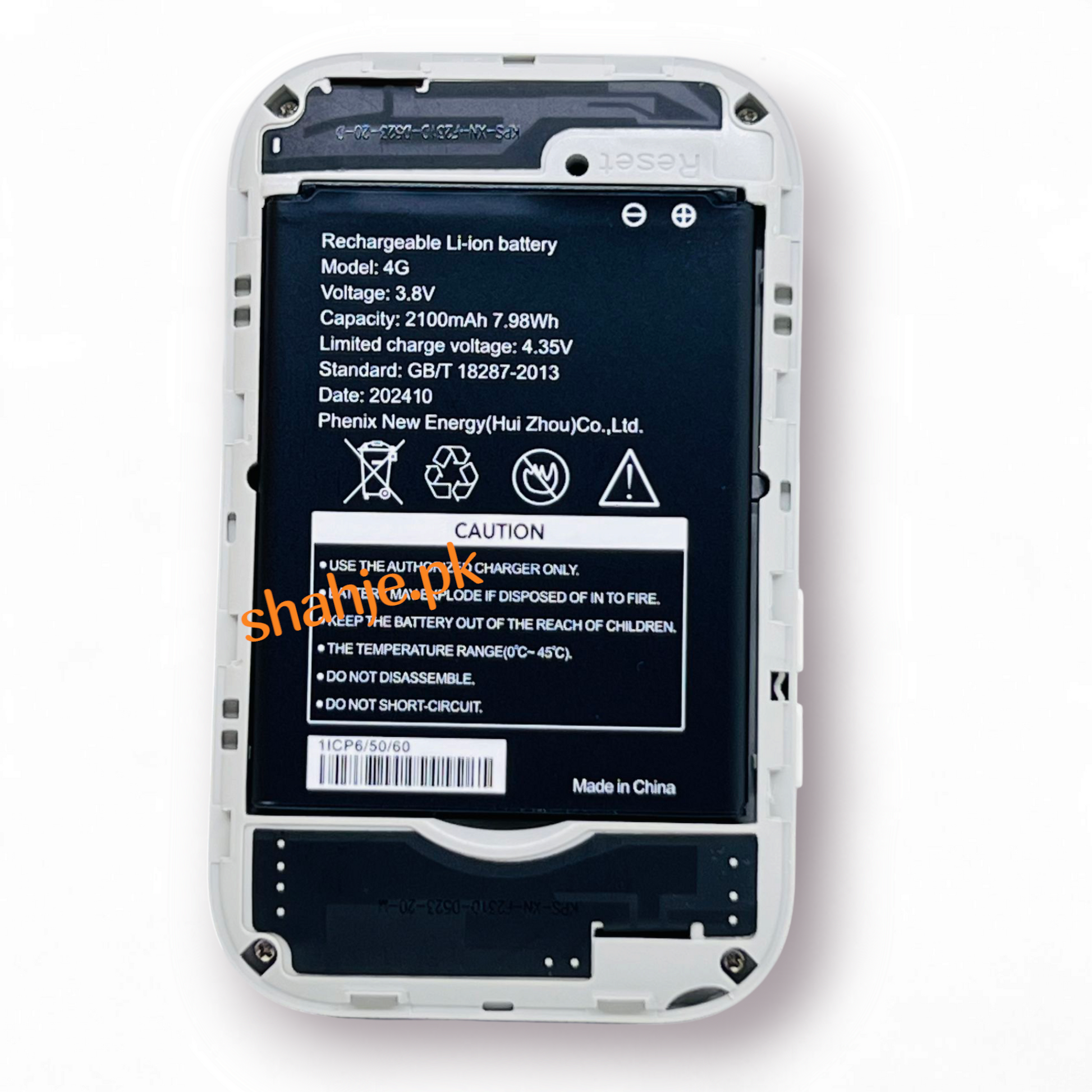

Equipped with a 2000mAh lithium-ion battery, Jazz D523 lasts:

• 🔋 5–6 hours of continuous use

• 💤 Up to 200 hours standby

Charging via Micro USB port takes approximately 2.5–3 hours. Power banks can be used for on-the-go recharging.

Battery Tips:

• Avoid complete discharges to preserve lifespan

• Use original or 1A/5V rated chargers

• Don’t expose to high heat

8. Web Interface and Configuration

You can access the admin panel by visiting:

http://192.168.8.1 (default IP)

Login Details (Default):

• Username: admin

• Password: admin

Main Configuration Features:

• 📶 Network mode selection (Auto/3G only/4G only)

• 🔒 WiFi SSID, Password and encryption settings

• 📧 SMS center

• 🔄 Firmware updates

• 📈 Data usage tracking

• 📵 MAC address filtering & parental controls

It’s an intuitive interface accessible via phone or laptop.

9. Jazz D523 vs Competitors

D523 is budget-friendly and lightweight, whereas Zong’s MF920 offers slightly better range. The D1500 is ideal for extended usage due to its larger battery.

10. Ideal Use Cases (Home, Travel, Business)

• 🧑🎓 Students: Affordable and portable internet for Zoom, LMS, and browsing

• 👨💼 Business Travelers: Lightweight mobile internet

• 🏠 Home Backup: Reliable secondary connection during WiFi outages

• 🚙 On-the-Go: Road trips, remote work sites, or outdoor camping

The D523’s compact build makes it ideal for mobility and flexibility.

11. How to Set Up and Activate Jazz D523

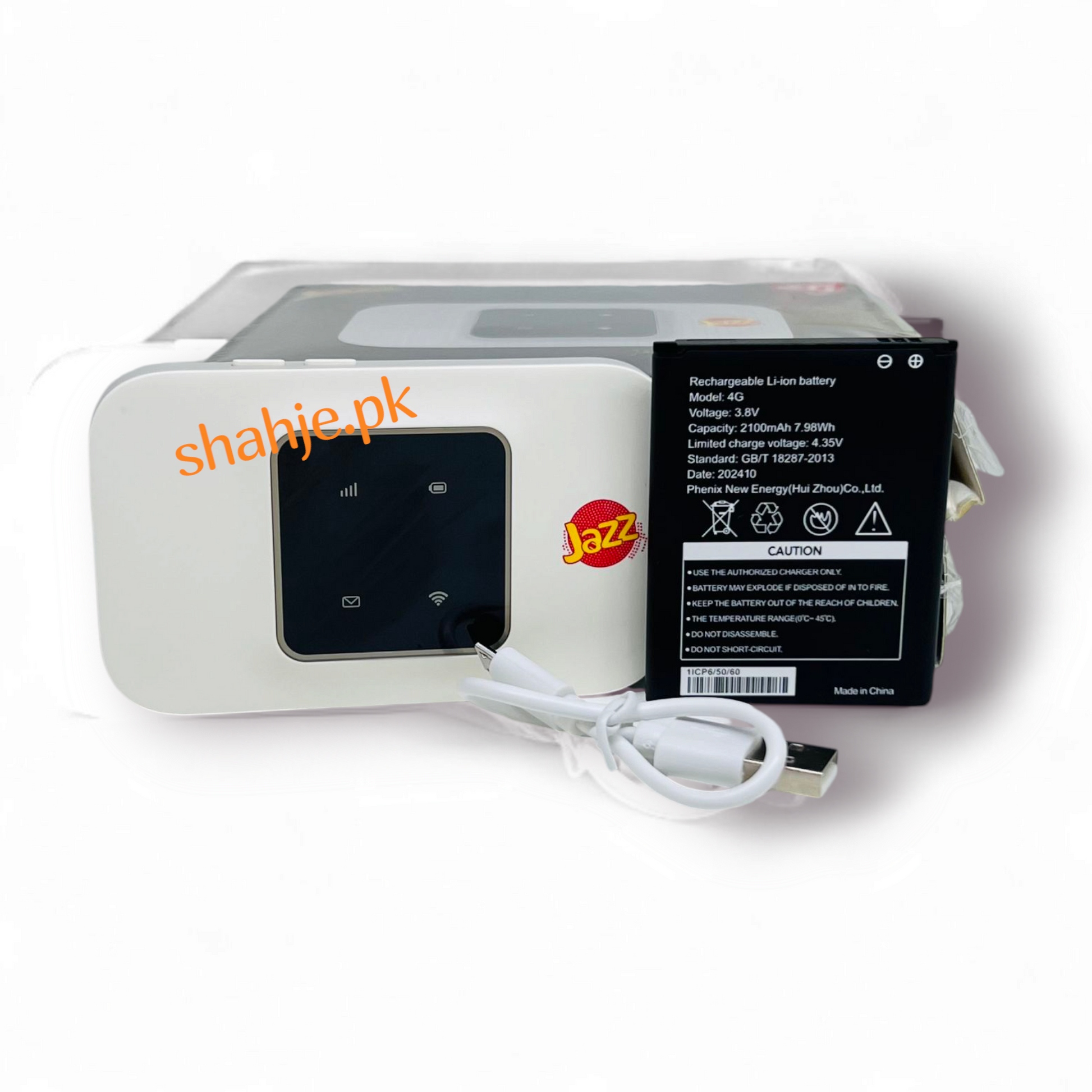

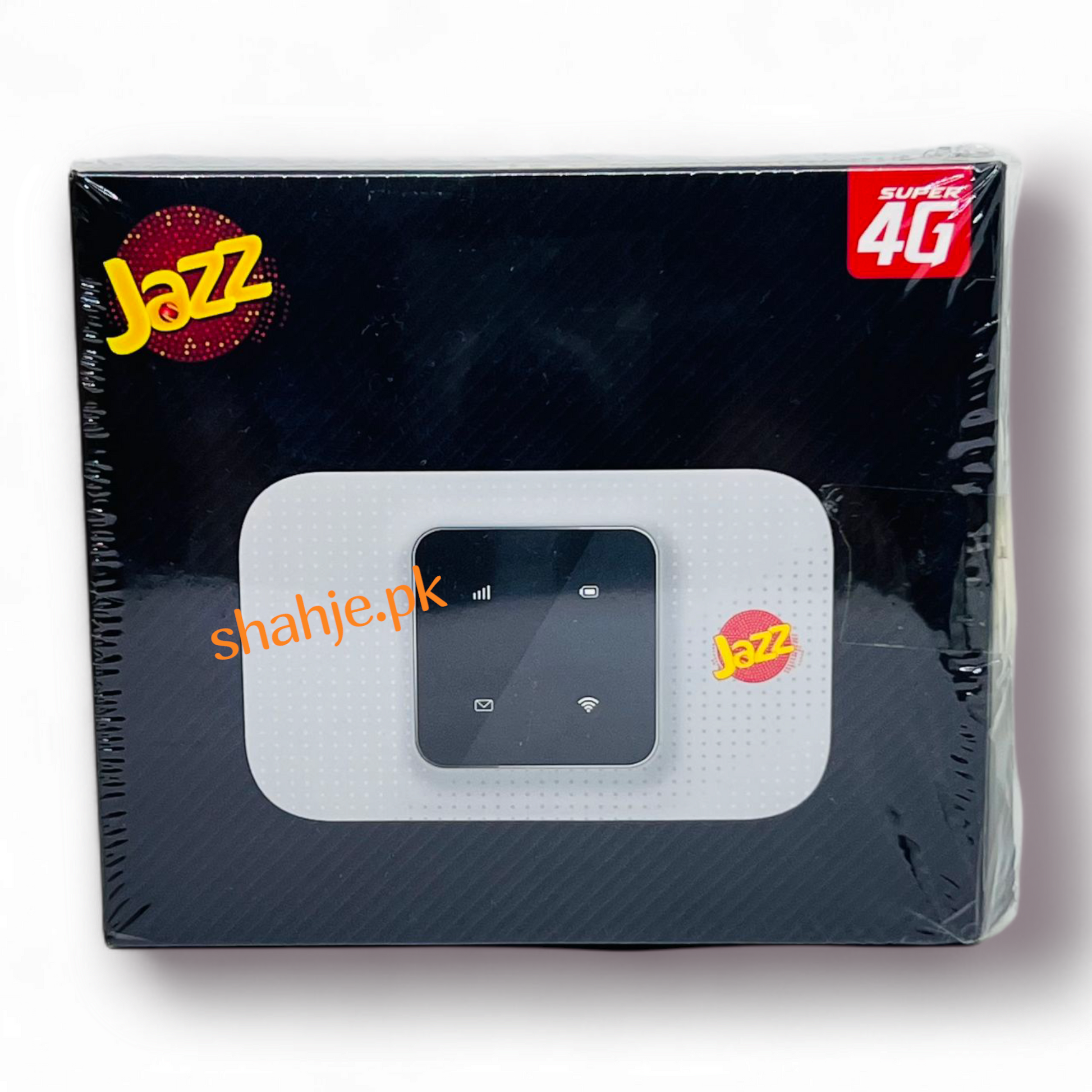

📦 In the Box:

• Jazz D523 device

• 2000mAh battery

• USB charging cable

• User manual

🛠️ Setup Steps:

1. Insert Micro SIM (Jazz by default or other if unlocked)

2. Insert the battery and close the lid

3. Power ON using the button for 3 seconds

4. Connect your phone/laptop to the WiFi SSID printed inside the battery cover

5. Open browser → enter 192.168.8.1 → login as admin

6. Set network preferences and WiFi password

12. Troubleshooting Common Issues

13. Firmware Upgrades and Customization

Jazz D523 supports firmware flashing (unofficially) to unlock:

• 🗝️ Full SIM unlock

• 📡 4G-only mode

• 🌍 International network compatibility

Note: Flashing may void warranty and should be done by experienced users only.

14. Security and Device Management

D523 comes with basic security controls, including:

• WPA/WPA2 WiFi encryption

• MAC address filtering

• Device blacklisting

• Admin password change

• Firewall configuration (basic)

These features help keep unauthorized users off your network.

15. Accessories and Add-ons

Some optional accessories include:

• 🎒 Protective case

• 🔋 Power bank (for extended usage)

• 🌐 External antenna (rarely used)

• 🔌 3-in-1 USB charging cable

16. Price and Value Analysis

It’s a cost-effective choice for people needing mobile internet without investing in expensive routers.

17. Customer Reviews and Feedback

🌟 Average User Rating: 4.3/5

Pros:

• Affordable

• Compact and lightweight

• Easy to use and configure

• Good speeds on Jazz and Zong SIMs

Cons:

• No dual-band WiFi (2.4GHz only)

• Limited battery life

• Locked by default (but can be unlocked)

18. FAQs – Jazz D523

Q1. Can I use Zong SIM in Jazz D523?
A: Yes, but only if unlocked.

Q2. How to reset the device?
A: Hold the reset pin (under the back cover) for 10 seconds.

Q3. Can I use it while charging?
A: Yes, it’s safe to use during charging.

Q4. Does it support SD cards?
A: No, there's no SD card slot.

Q5. Can I set it to 4G-only?
A: Yes, via the web admin interface.

19. Final Verdict: Should You Buy It?

The Jazz D523 is a budget-friendly, reliable, and compact 4G hotspot ideal for students, travelers, and casual users. While it lacks advanced features like 5GHz WiFi or large batteries, its price-to-performance ratio is excellent.

If you're looking for basic connectivity, flexibility, and ease of use, the Jazz D523 is worth considering—especially when unlocked.
