Shah Jee Electronics

TS9 to TNC Female RF Adapter(Connector) | High-Gain Connector for Modems – Shahje.pk

Rs.900.00
Rs.1,200.00

Hurry Up! Only 50 left in stock!

💳 Payment Method


برائے مہربانی آڈر بک کرتے وقت پیمنٹ کا سکرین شاٹ آڈر کے ساتھ اپلوڈ کریں سکرین شاٹ میں بھیجنے والے کا اکاؤنٹ نمبر تاریخ نام اور ٹرانزیکشن نمبر لازمی ہونا چاہیے ورنہ قابل قبول نہیں ہو گا.

Please upload a screenshot of the payment along with the order while booking the order. The screenshot must contain the sender's account number, name, date and transaction number, otherwise it will not be accepted.

Bank Name: UNITED Bank LIMITED (UBL)

IBAN: PK37UNIL0112129037100997

Account Title: ShahJee Electronics

Shop the premium TS9 Male to TNC Female RF coaxial adapter at Shahje.pk. Perfect for connecting external antennas to Huawei, ZTE, and Netgear modems. Low loss, durable, and fast shipping in Pakistan.

TS9 to TNC Female RF Adapter(Connector) | High-Gain Connector for Modems – Shahje.pk

Table of Contents

  1. Introduction to TS9 to TNC Female Adapters

  2. Technical Specifications & Build Quality

  3. Compatibility Guide: Modems and Routers

  4. Why You Need an RF Adapter for 4G/5G

  5. Installation Guide: Step-by-Step

  6. Performance Analysis: Signal Gain & Loss

  7. Comparative Analysis: TS9 vs. SMA vs. CRC9

  8. Frequently Asked Questions (FAQs)

  9. Why Buy from Shahje.pk?

1. Introduction to TS9 to TNC Female Adapters {https://www.google.com/search?q=%23intro}

The TS9 to Female TNC Connector is an essential bridge for telecommunications enthusiasts and professionals alike. If you are struggling with weak 4G, LTE, or 5G signals indoors, this adapter is your first step toward connectivity freedom.

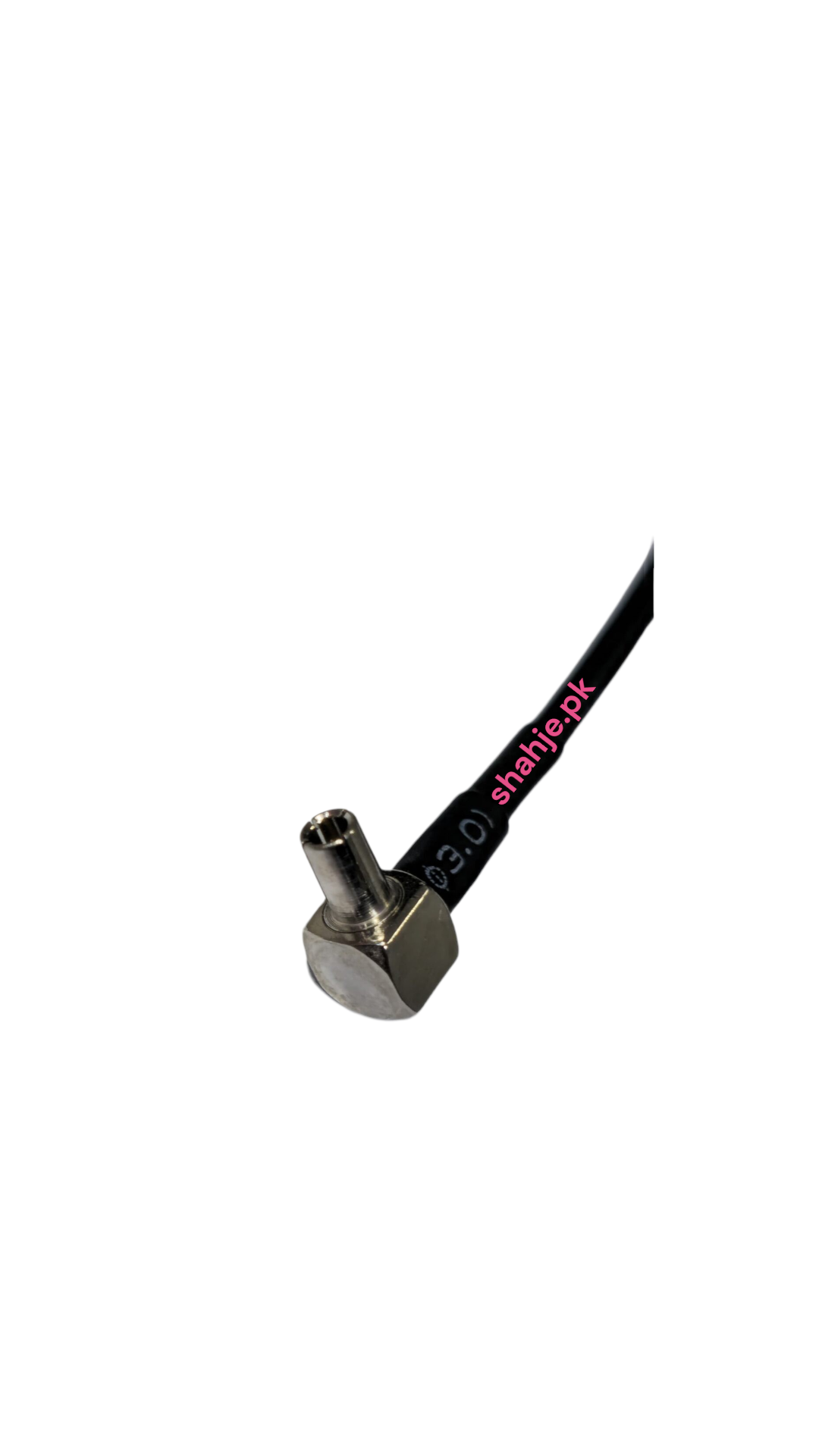

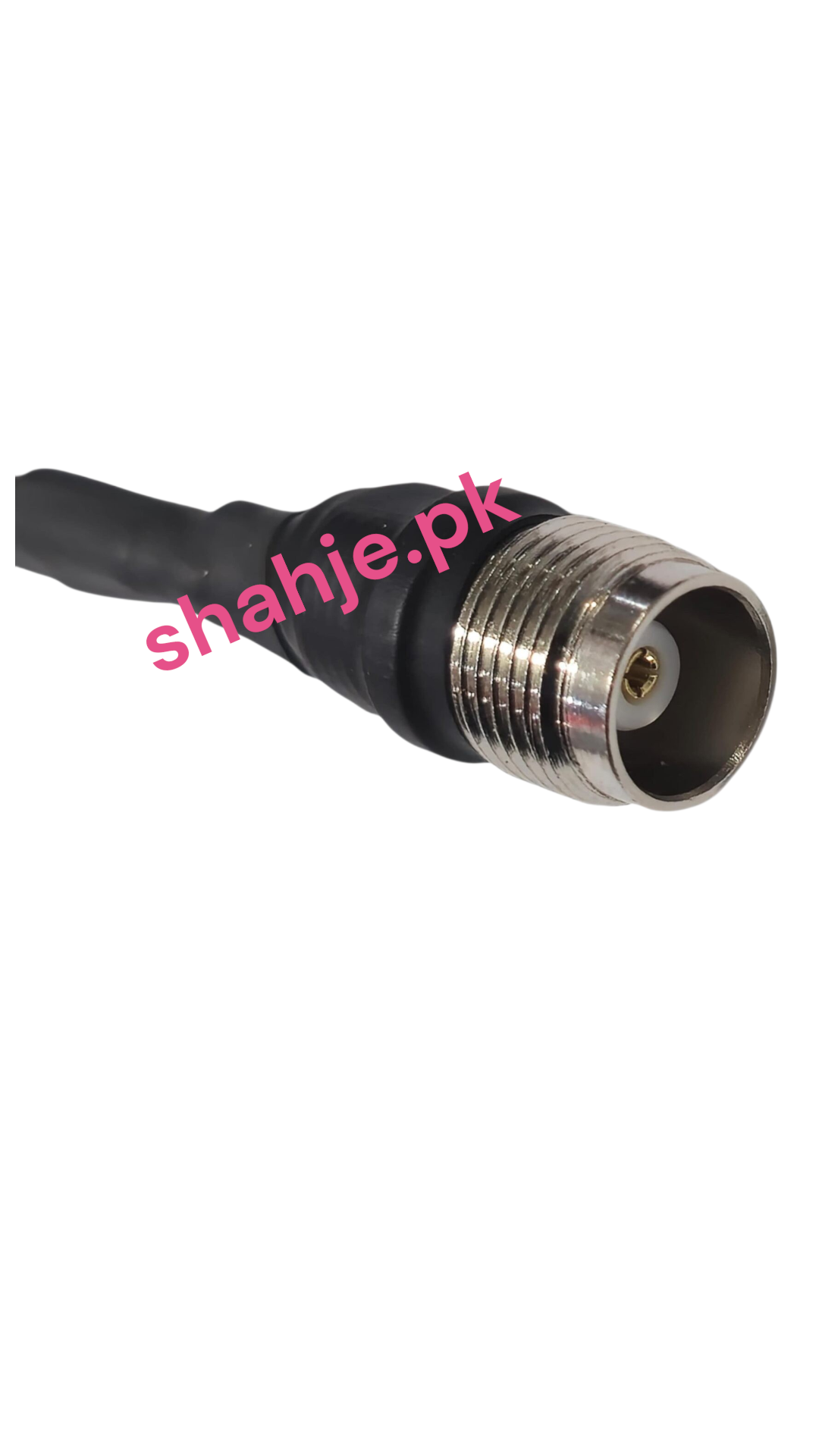

In the world of Radio Frequency (RF), connectors are the "handshakes" between devices. The TS9 end—a small, push-on sub-miniature connector—is the standard for most mobile hotspots and USB modems. The TNC (Threaded Neill–Concelman) end is a rugged, threaded version of the BNC connector, widely used in outdoor antennas and industrial signal boosters.



2. Technical Specifications & Build Quality {https://www.google.com/search?q=%23specs}

When purchasing RF hardware from Shahje.pk, quality is non-negotiable. A poorly machined connector can lead to "standing waves" (VSWR) that can actually damage your modem’s internal circuitry.

Feature Specification
Connector A TS9 Male (Plug)
Connector B TNC Female (Jack)
Body Material Pure Brass (Nickel Plated)
Impedance 50 Ohm
Frequency Range DC to 6 GHz
Insulation PTFE (Teflon)
Durability >500 Mating Cycles

3. Compatibility Guide: Modems and Routers {https://www.google.com/search?q=%23compatibility}

This adapter is specifically designed for devices that utilize the TS9 port. At Shahje.pk, we frequently see this used with:

  • Huawei: E5573, E5577, E8372, B618, B818.

  • Netgear Nighthawk: M1 (MR1100), M2 (MR2100), M5.

  • ZTE: MF910, MF920, Flare.

Internal Link Suggestion: View our full range of External 4G Antennas to pair with this connector.

4. Why You Need an RF Adapter for 4G/5G {https://www.google.com/search?q=%23why-need}

Most high-performance outdoor antennas (like Yagi or Panel antennas) come with thick LMR400 or RG58 cables terminated in TNC or N-type connectors. However, your portable modem is too small to fit these heavy cables.

The TS9 to Female TNC Connector acts as the interpreter. It allows you to use a high-gain, outdoor-mounted antenna to pull in distant signals and feed them directly into your small, portable device.

5. Performance Analysis: Signal Gain & Loss {https://www.google.com/search?q=%23performance}

Every connector introduces a small amount of "Insertion Loss." Our adapters are engineered to keep this loss below $0.1\text{dB}$ per connection.

The formula for total system gain is:

$$G_{total} = G_{antenna} - L_{cable} - L_{connectors}$$

By using high-purity brass and PTFE insulation, this adapter ensures that the signal your antenna catches is the signal your modem receives.

6. Comparative Analysis: TS9 vs. SMA vs. CRC9 {https://www.google.com/search?q=%23comparison}

It is easy to confuse TS9 with CRC9. While they look similar, the TS9 is slightly larger ($3.5\text{mm}$) compared to the CRC9 ($3.0\text{mm}$). Using the wrong one will result in a loose connection and signal drops.

  • TS9: Common in Netgear and newer Huawei.

  • CRC9: Common in older Huawei USB sticks.

  • SMA: Standard for fixed location "CPE" routers (like the Huawei B315).

7. Frequently Asked Questions (FAQs) {https://www.google.com/search?q=%23faqs}

Q: Will this connector improve my internet speed?

A: Directly, no. However, it allows you to connect a better antenna. Better signal quality (SINR) leads to higher data throughput and faster speeds.



Q: Is it waterproof?

A: The TNC side is threaded and weather-resistant, but we recommend using self-amalgamating tape for outdoor joints.

8. Why Buy from Shahje.pk? {https://www.google.com/search?q=%23shahje-advantage}

At Shahje.pk, we specialize in RF solutions tailored for the Pakistani market. Whether you are in a remote area of Gilgit or a high-rise in Karachi, we provide the hardware to keep you online.

  • Fast Shipping: Nationwide delivery within 2-4 business days.

  • Technical Support: Not sure if this fits? Contact our experts.

  • Quality Tested: Every batch is tested for impedance consistency.
